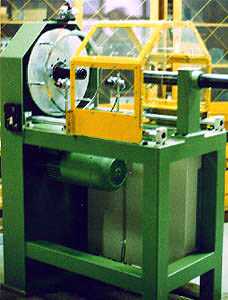

Central spinner for retaining coils SK 230

Technical data

• Spinner speed (max.) n = 3000 min-1
• Spinner clearance 28 mm
• Cable passage height 1000 mm (1100 mm)
• Pitch range 35 mm to 70 mm
• Direction of rotation Adjustable clockwise - 0 - Left
• Thread tension adjustable via potentiometer
• Spinning material PP film and yarns
• Outer diameter, max. 190 mm
• Width 105 mm
• Mounting diameter 63 mm
• Tape break and tape end monitoring
• Holder for spare spools available
